1. Equivalant inductance

inductance equiv
Figure 1. Coupled inductors measurements
hw13 toroid2

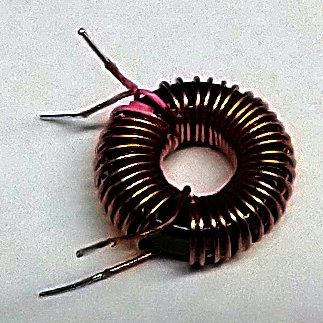

Figure 2. Dual winding coupled inductor labels
hw13 toroid1

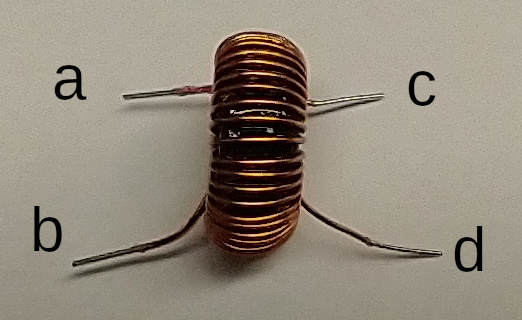

Figure 3. Side view showing two windings

From the measurements taken on the above inductor:

  1. If the coupling coefficient was k=1, what would the mutual inductance be?

  2. Estimate the mutual inductance and coupling coefficient of these coils.[1]

  3. Determine which pair of terminals should have the dots (a or b) and (c or d).

2. Submission

Write up a description of your aproach and solution. Submit as a PDF to Blackboard.

1. Don’t expect your calculations to yield One True Number! Use several ways to find M and combine them in a reasonable way to arrive at your estimate.
